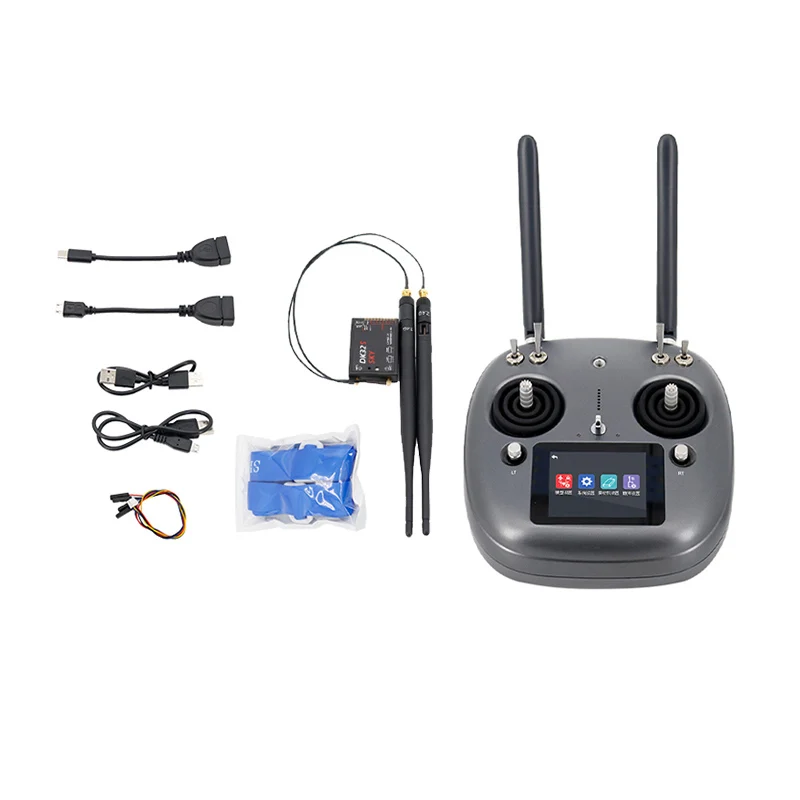

Original SIYI DK32 S/SE Agriculture Remote Controller with 2.8 Inch LCD Touchscreen Long Range Datalink 16 Channels 10KM

SIYI DK32 SE Agriculture Remote Controller with 2.8 Inch LCD Touchscreen Long Range Datalink 16 Channels 10KM

2.4G ISM Band | 10KM Range, 2KM Ground to Ground Range | 16 Multi-Functional Channels | 2.-inch LCD Touchscreen Configuration | Dual Operator, Coach Mode | Voice Broadcast | 14 Hours | Compatible with JIYI, BOYING, VK, Pixhawk Flight Controllers

Technical

Overall

Model: DK32 SE
Frequency Band: 2400 to 2483 MHz
Control Range: 10 Kilometers
Channels: 16 physical channels, 16 communication channels
Compatible Agriculture Flight Controllers:
- BOYING Paladin V2
- JIYI K++ V2 / K3A Pro
- VK V7AG
- Pixhawk / APM based flight controllers
Compatible RC Models: Planes, Copters, Gliders, Multi-Rotors, Vehicles, Boats, Robotics

Remote Controller

Monitor: 2.8-inch LCD Touchscreen
Language Display: Chinese / English
Dimensions (antenna overlapped): 184.5 x 180 x 114 mm
Weight: 610 g
Battery Capacity & Type: Built-in Chargeable 5000 mAh 3.7 V 1S Li-Po, 18.5 Wh
Charging Time: 3.5 hours
Battery Life: 12 hours
Interface & Ports:
- Charging: Micro-USB
- Firmware Upgrade: Micro-USB
- External Storage: SD/TF Card Slot
Working Temperature: 0 to 55℃

Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
- SBUS & PWM: Pins
- Datalink (to FC): UART 4-Pin
- Firmware Upgrade: Micro-USB
Dimensions (antenna excluded): 55 x 45 x 16 mm
Weight (antenna excluded): 50 g
Antenna Gain (standard omni): 5 dBi
Power Input: 14.8 to 50.4 V (4S to 12S)
Working Temperature: -10 to 55℃
