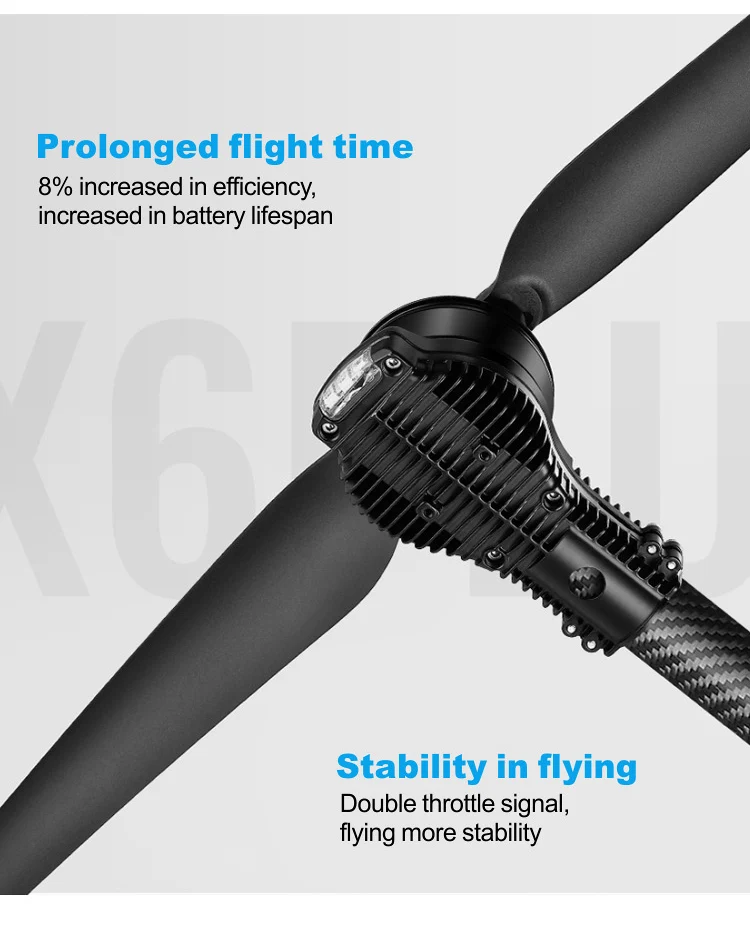

XRotor X6-PLUS
SSpecifications
Max. Thrust
11.8kg/Axis (46V, Sea Level)
Recommended Takeoff Weight
3.5-5.5kg/Axis (46V, Sea Level)
Recommended LiPo Battery
12-14S(LiPo)
Operating Temperature
-20~50℃
Combo Weight
790
Waterproof Rating
IPX6
ESC
Recommended LiPo Battery
12-14S(LiPo)
PWM Input Signal Level
3.3V/5V
Throttle Signal Frequency
50-500Hz
Operating Pulse Width
1050-1950us(Fixed or cannot be Programmed)
Max. Input Voltage
61V
Max. Input Current (Short duration)
100A(w/ Good Heat Dissipation)
BEC
No
Propeller
Diameter×Pitch
24*8.0
